Packages for Teaching & Research in the Biological Sciences:

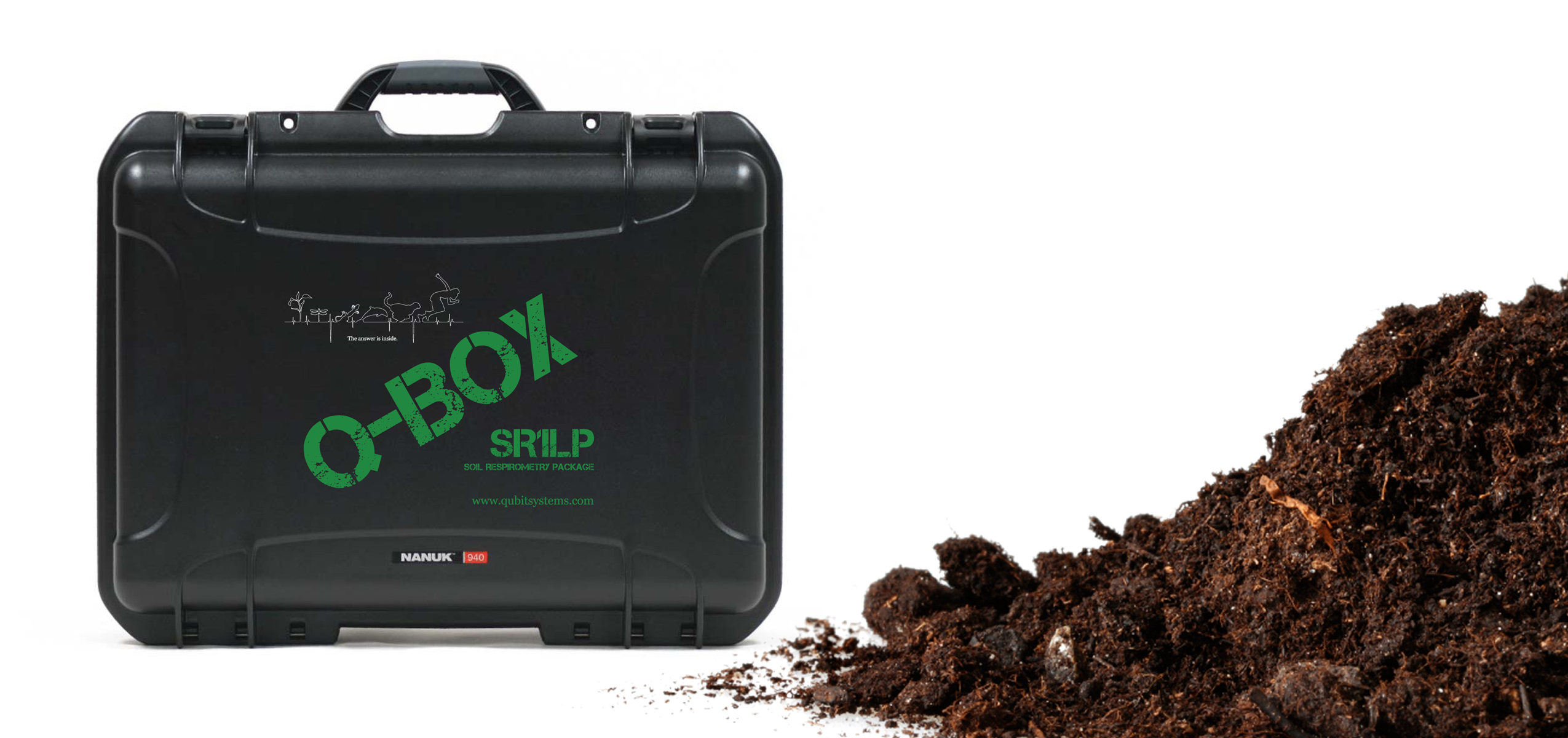

Q-Box SR1LP Soil Respiration Package

The Q-Box SR1LP Soil Respiration Package provides the user with all of the materials required to measure soil respiration in-situ. Short term spot measurements in the field are possible with the battery pack. Soil samples can also be assessed back in the lab when placed in a flow-through chamber.

Soil respiration is measured as the rate of CO2 accumulation by the Q-S151 CO2 Analyzer. In addition to soil respiration Q-Box SR1LP Package allows measurements of soil temperature with the S132 Temperature Probe and Water Loss from the Soil with the S161 Temperature / Relative Humidity Sensor. Soil Moisture is measured with the S135 Soil Moisture Sensor. The flow through the system is monitored by the Q-G266 Flow Monitor. The Analog Signals from all of the Sensors and Analyzers are converted to Digital Signals via two integrated LabQuest Mini Interfaces (6 Channels). Data is displayed, recorded and manipulated on a PC or Macintosh computer using Logger Pro software.

There are many other potential applications for Q-Box SR1LP Package both in Open Flow and Closed Gas Exchange Systems. For example, it can be used to measure CO2 exchange from any organism or sample maintained in a flow-through chamber. In addition, it can be used to examine respiration or fermentation in aqueous suspensions when air or N2 is bubbled through the suspension and the outflow gas is analyzed using the CO2 Analyzer. Provided that CO2 production rates are in the correct range, the package can be used to measure CO2 production of virtually any biological system. For more information on Q-Box SR1LP Package please either contact us or Qubit.

  1. Features:
  2. Self-contained Gas Analysis System for in-situ Soil Respiration Measurements
  3. Measurements of CO2 Exchange of any Organism in a Flow through System
  4. Modular System with Interchangeable Components
  5. Housed in a Rugged Case for Easy Transport and Field Use
  1. Applications:
  2. Soil Respiration Measurements in-situ (CO2 Accumulation)
  3. CO2 Exchange Measurements of Organisms Placed in the Flow through Chamber
  4. Head Space Measurements of CO2 (Fermentation Studies, Bacterial Respiration)
  1. Components:
  2. Q-P103 Gas Pump (1L/min No Load)
  3. G180 Soil Chamber with collar (10.2cm × 20cm High)
  4. G115 Flow Through Chamber (3.8 × 20cm)
  5. Q-S151 (0-2000 ppm) (Includes CO2 and H2O Scrubbers)
  6. S132 Temperature Probe
  7. Q-S161 RH/Temperature Sensor
  8. S135 Soil Moisture sensor
  9. Q-G266 Flow Monitor (0-1L/min)
  10. G122 Gas Bags Large (30L × 2)
  11. A249 Battery Pack
  12. C610 Two integrated LabQuest Mini Interfaces
  13. C901 Logger Pro Software
  14. C404 Customized Setup Software
  15. Q-Box Accessory Kit
  16. Rugged Water Proof Case Housing all Sensors and Analyzers
  17. Manual
  18. Individual Power Supplies for standalone use of Analyzers and Sensors
  1. Q-Box SR1LP Software:

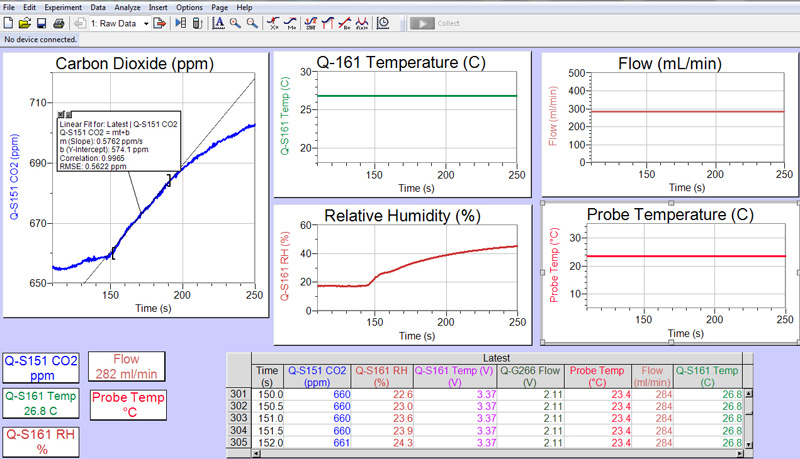

    1. Sample In-vivo Soil Respiration Data from a Closed-flow System:

    1. Template for Calculation of Soil Respiration:

All Specifications are subject to change without a Prior Notice
