Gas Sensors / Mixers / Pumps / Other Sensors:

Q-P103 Gas Pump, 1LPM

The Q-P103 Gas Pump is a diaphragm style pump that can generate gas flows up to 1L/min. Rubber feet and internal rubber pump mount ensure quiet operation. Luer style gas inlet and outlet ports allow easy connection to any gas exchange system.

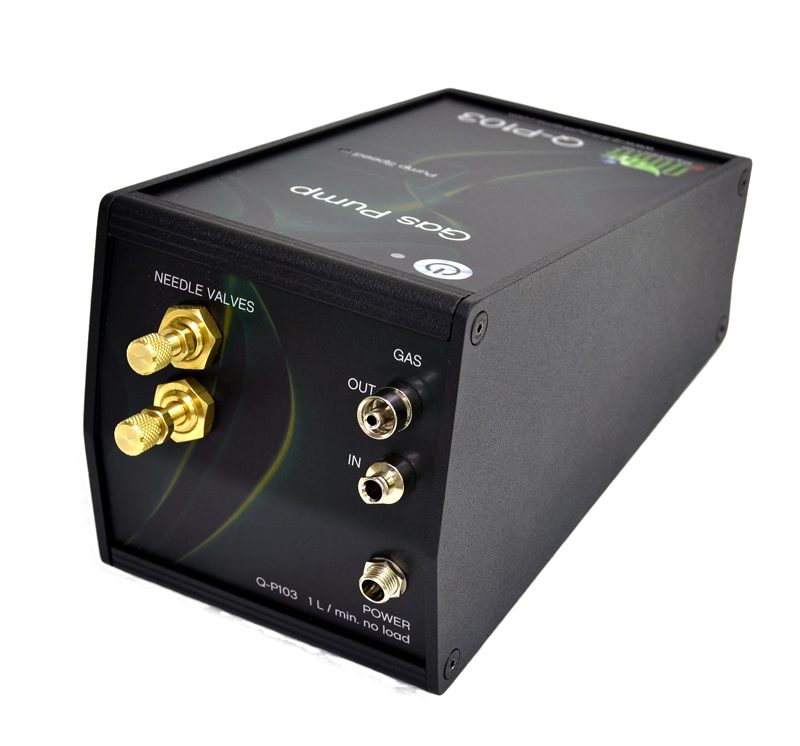

A potentiometer allows accurate control of pump speed from 50 to 100% with reduced risk of accidental alterations. The flow rate of the gas can be adjusted with two needle valves on the back of the instrument. Internal outlet laminar dampening volume ensures dampening of pressure pulses for use with laminar Mass flow Sensors.

  1. Features:
  2. Simple Operation
  3. Two Valve Adjustments of “in” and “out” Gas Flow
  4. 1 LPM Max Flow (No Load)
  1. Applications:
  2. Delivery of Gas to various Analyzers
  3. Delivery of Gas to Algal Cultures
  4. Delivery of Gas in Aquaculture
  5. Essential Component of Q-Box Packages
  1. Specifications:
  2. Power Supply: 12V DC, 215mA
  3. Max. Pressure: 1.8 PSIG
  4. Max. Vacuum: 3.7" HG
  5. Max. Gas Flow (No Load): 1 LPM
  6. Dimensions (H x W x D) (cm): 5.5 to 9.5 × 9.5 × 17
  7. Weight: 900gms
  8. Material: Metal
  9. Warranty: 1 Year

All Specifications are subject to change without a Prior Notice
