Packages for Teaching & Research in the Biological Sciences:

Q-Track Breath by Breath CPX System

The Q-Track is a wearable breath-by-breath CPX system that allows you to conduct VO2 and VCO2 measurements almost anywhere. With a total system weight of only 1.2 Kg, it does not impede normal exercise and adds very little load to the subject, especially when worn in a body harness. Data are displayed on a battery-powered interface and analyzed using sophisticated, but intuitive software.

The Q-Track, with its touchscreen interface, is powered by a rechargeable Lithium-ion battery pack that provides +8 hours of power in the field. The NDIR CO2 Analyzer and Fuel Cell O2 Sensor provide extremely accurate measurements of breath gases, while the pneumotach spirometer exceeds ATS standards for monitoring breath flow and volume.

The Q-Track Software allows for numerous data display options, including raw and calculated data shown in graphical, meter and spreadsheet formats. All data are available for post-exercise manipulation by the user. The software has a comprehensive suite of statistical and mathematical functions, allowing for second by second visualization, or averaging over whatever time period is selected. For more information kindly contact us

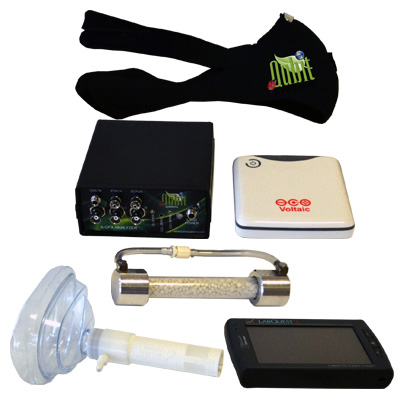

  1. Components of Q-Track System:
  2. Fuel Cell O2 Sensor
  3. NDIR CO2 Analyzer
  4. Disposable / Sterilizable Pneumotach
  5. Adjustable Face Masks
  6. Mask and Attachments only 85g
  7. System Weight Only 1.2Kg
  8. Collect Data Anywhere
  9. Intuitive Software
  10. Automated VO2 and VCO2 Calculations
  11. Heart Rate Monitor Included
  12. PFT Functions
  13. +8 Hour Battery Life
  1. Software:

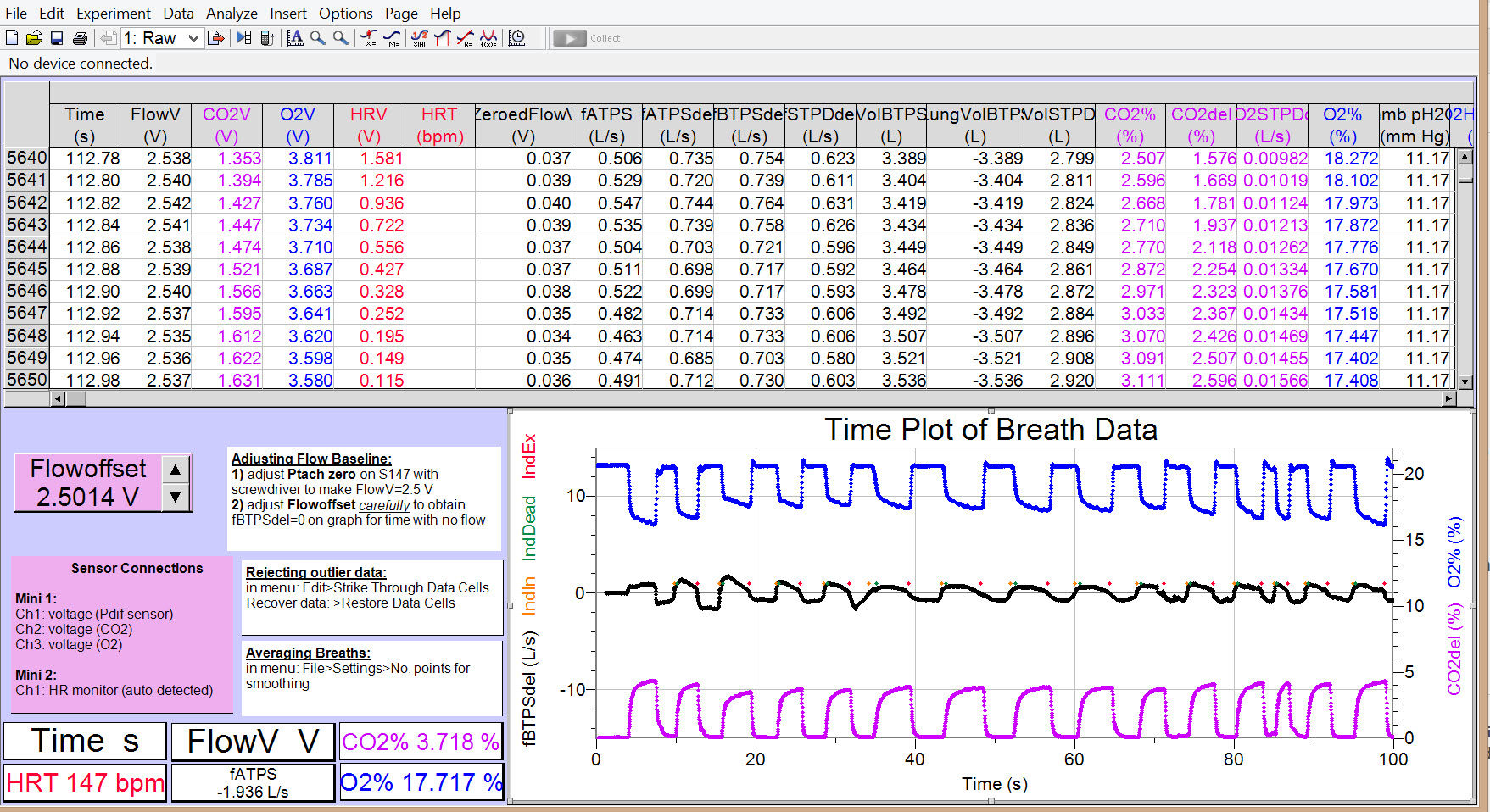

    1. Raw Data

    1. Calculated Data

All Specifications are subject to change without a Prior Notice
