Packages for Teaching & Research in the Biological Sciences:

Q-Box HR1LP Human Respiration Package

The Q-Box HR1LP Human Respirometry Package allows users to conduct numerous safe, exciting investigations in Respiratory and Cardiovascular Physiology. The equipment and instruments are simple to set up and operate. The Q-Box HR1LP Human Respirometry Package is ideal for use in undergraduate laboratory courses, yet the package's Infrared CO2 Analyzer, Oxygen Sensor, Pneumotach Spirometer and Wireless Exercise Heart-Rate Monitor have the accuracy and resolution required for research. The Q-Box HR1LP Human Respirometry Package monitors CO2 and O2 continuously in mixed expired air and calculates changes in VO2 and VCO2. Spirometry portion of the package provides measurements of breathing frequency, relative breathing pattern and heart rate data from the average breath flow minute ventilation rate (VE) is also calculated. During spirometry measurements vital capacity maneuvers can be performed to obtain Flow-Volume Loops and Volume-Time plots. Calculations of various lung volumes and capacities are done in the software.

  1. Features:
  2. Versatile, Modular, Easy to Use, Gas Exchange System for VCO2 and VO2 Measurements
  3. Includes Spirometry Module for Lung Capacity and Volume Measurements
  4. Easily Adaptable to Animal Respiration Measurements with additional accessories
  1. Applications:
  2. Human Respirometry Measurements
  3. VO2, VCO2 Measurements During Rest and Mild Exercise
  4. Heart Rate Measurements
  5. Tidal Lung Volume and Vital Lung Capacity Measurements
  6. Minute Ventilation and Breathing Capacity Measurements
  1. Components:
  2. Q-P651 Gas Pump (3L/min No Load)
  3. Q-G265 Flow Monitor (2L/min)
  4. Q-S102 O2 Analyzer (0-100%)
  5. Q-S153 CO2 Analyzer (0-10%) (Includes CO2 and H2O Scrubbers)
  6. S182 Wireless Exercise Heart Rate Monitor
  7. S184 Pneumotach Spirometer
  8. A505 Face Masks (2 Large, 2 Medium)
  9. A506-neo Neoprene Holder for Face Masks
  10. A508 Non-rebreathing valve (with Mask Adapter, Spirometer and Breath Mixing Bag Adapters, 2 Valve Leaflets and Valve Insertion Tool, Two Extra Valve Leaflets are Included)
  11. G129 Breath Mixing Volume Bags (2)
  12. C610 LabQuest Mini (2) Data Interface System
  13. C901 Logger Pro Software
  14. C404 Customized Setup Software
  15. Rugged, Weather-proof Case
  16. Q-Box Accessory Kit
  17. Manual
  1. Q-Box HR1LP Software:

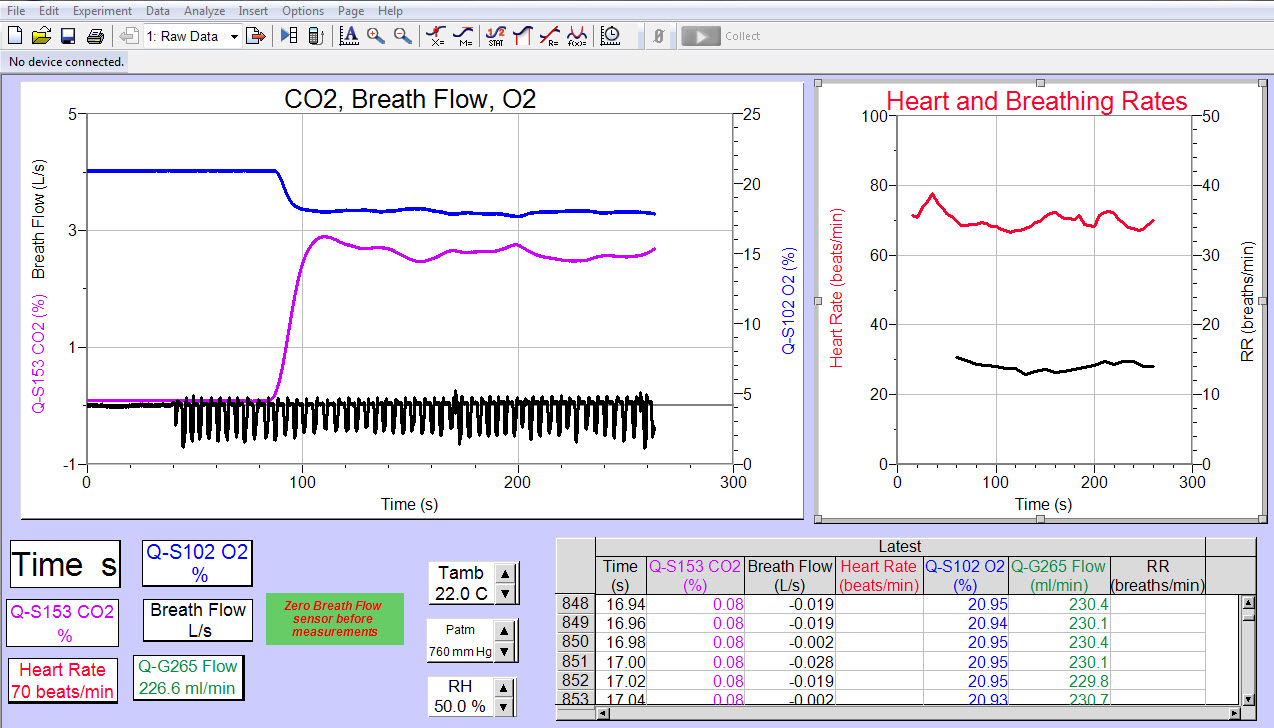

    1. Software: Respirometry Data Set

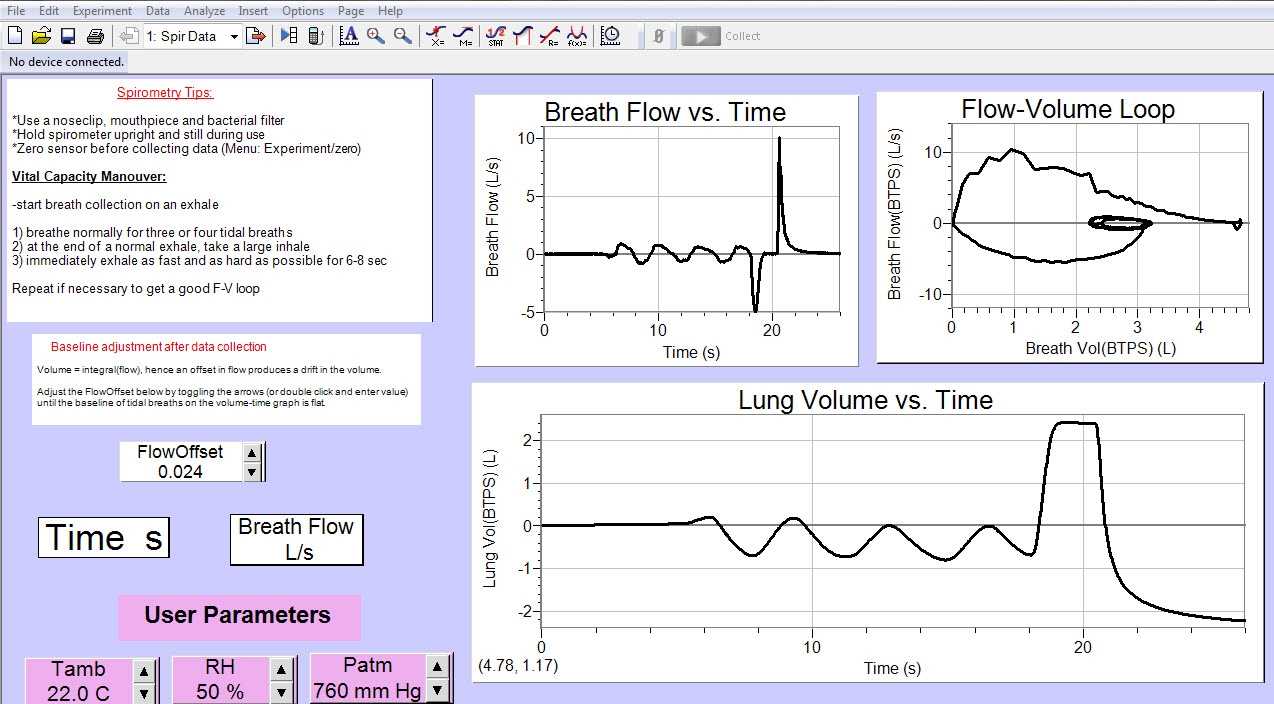

    1. Software: Spirometry Data Set

All Specifications are subject to change without a Prior Notice
