G400 Gas Mixing System

G400 Gas Mixing Systems can provide any gas mixture for up to 9 different gases. Highly accurate gas blending from ml to hundreds of Liters is provided by a single gas mixing system. Gases are mixed automatically using Mass Flow Controllers with superb accuracy. PC-based MFC Gas Mixing Software (C960) performs all the calculations required to generate your chosen gas mixture and implements mass flow controller settings with a mouse click.

User may mix one gas combination and queue the next. If any selection is out of range the software warns the user. Contact QUBIT or us with your specific requirements. Let us know a number of gases, types of gases being mixed, concentration ranges of resultant gases and the total final flow rate required, and we will design your Gas Mixing System.

  1. Features:
  2. Combine upto 9 gases using Qubit's Mass Flow Controllers
  3. Mass Flow Controller Ranges from 0.5 SCCM to +200 SLM
  4. Mass Flow Controller accuracy 0.2% full scale or 0.8% of reading
  5. Multiple Alternate Gases may be used with each controller
  6. 26 Different Gas Flow Calibrations stored per controller
  7. Pure or Mixed Gases used as Input Gas
  8. Manual or Software Control of Mixing
  9. PC Interface provided for Software Control
  1. Applications:
  2. Gas Composition Control of Algal Culture
  3. Gas Mixture Control of Incubators
  4. Food Storage Research
  5. Plant Growth and Tissue Culture
  6. Animal Research
  1. Specifications:
  2. Flow Rate: User Specified from 0.5 SCCM up
  3. Accuracy: 0.8% of reading plus 0.2% Full Scale
  4. Optional Enhanced Accuracy of 0.4% of Reading
  5. Software or Manual Control
  6. Upto 9 Different Gases Mixed at a Time
  7. Calibrations for 40 Different Gases Included
  8. Response Time: 100ms
  9. Warm-up Time: <1sec
  10. Operating Temp.: -10°C to 60°C
  11. RH Range: 0-100%
  12. Maximum Pressure: 145 psig
  13. Communication RS-232 Serial / RS-485 Serial via 8/9 pin Mini-Din
  14. Power: 12 to 30V DC, 0.25 Amp

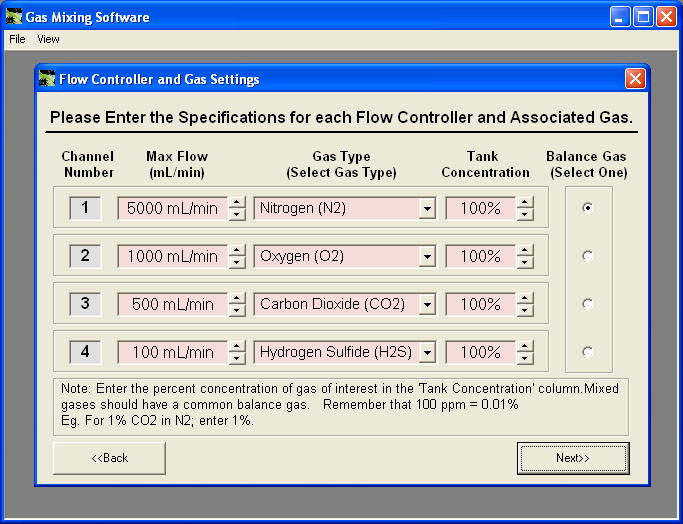

  1. Gas Mixing Software:
  2. Combine 2 to 9 Gases Automatically
  3. Instantaneous Provision of Required Mixture with a Mouse Click
  4. No Calibration Input Required
  5. Intuitive Command Structure
  6. Automated Flow Implementation based on Ratio and Total Flow
  7. Error Messages prevent Selection Out of Range
  8. Implement One Gas Mixture and Queue the Next
  9. Store and Retrieve Settings

All Specifications are subject to change without a Prior Notice
